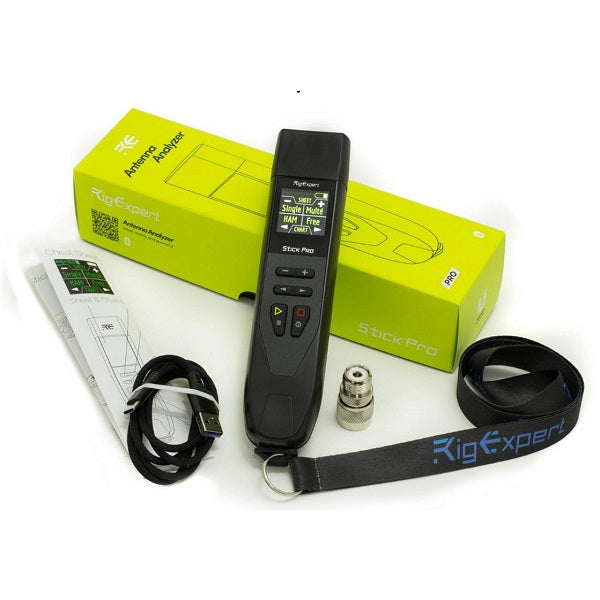

RigExpert Stick Pro – Antenneanalysator (100 kHz – 600 MHz)

RigExpert Stick-Pro Specifications:

• Frequency Range: 0.1 to 600 MHz

• Frequency Entry: 1 kHz

• Measurement for Systems: 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm

• SWR Measurement Range: 1 to 10 in chart modes, 1 to 100 in numerical modes

• R and X Range: 0 - 10000, -1000 -10000

• Display Modes: Multi (a quick check of multiband antennas), SWR chart, 100 points, SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency

• RF Output Connector: Type-N

• Output Power: -10 dBm (at a load of 50 ohms)

• Output Signal Shape: square

• Power: One 3.7V Lithium-ion battery type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

• Сharge Time: 3 hours when using a charger

• Interface: 2 × 3 keys on the waterproof keypad, 290×220 color TFT display

• Menus and help screens in English (by default), Japanese,

• USB connection to a personal computer, v.4.2 BLE Single Mode, Class B

• Operating Temperature: 32 - 104 °F (0 - 40 °)

• Weight: 6.5 oz. (185g) with battery

• Dimensions: 7.3 x 1.6 x 1.3 in. (185 x 40 x 33mm)
